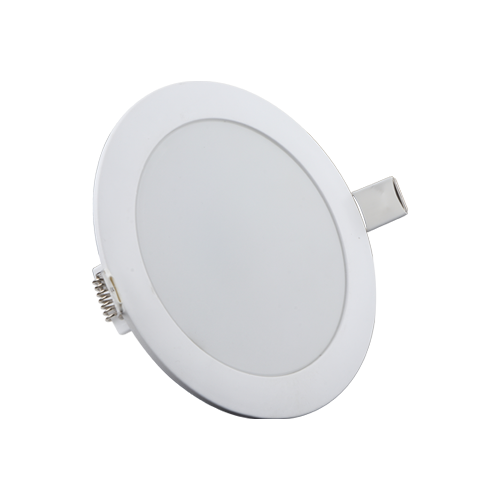

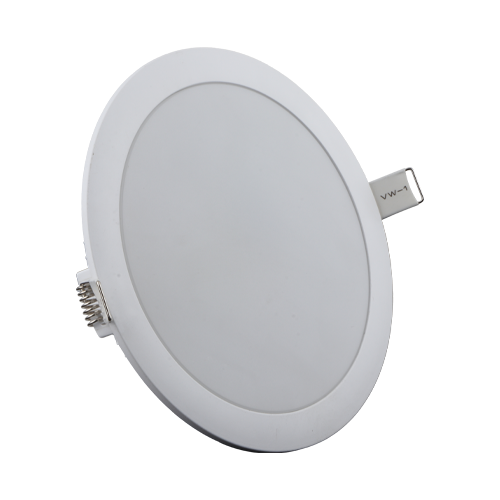

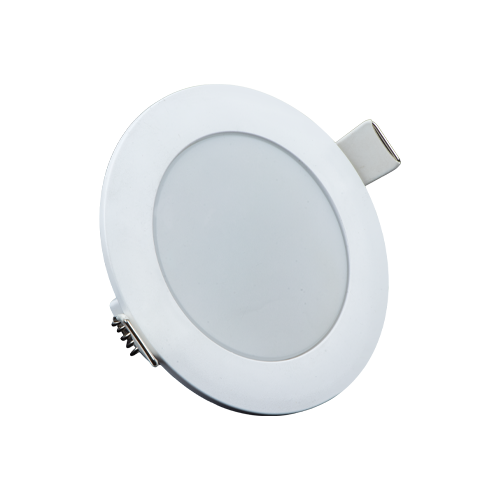

DOWN LIGHTS DL117, DL1115, DL1125.

CODE

DIMENSIONS(mm)

CO(mm)

WATTAGE

DL117

95 x 35

70

7

DL1115

130 x 35

106

15

DL1125

160 x 30

120

25

LED

Bridgelux /Edison/Seoul

LED SIZE

SMD

BODY COLOR

white

IP RATING

20

COLOR TEMP

3000 / 4000 / 6500k

LUMEN OUTPUT

>420lm / >1050lm / >1750lm

MATERIAL

Polycarbonate casing

MOUNTING

Recess Mount

WARRANTY

2 Yrs
