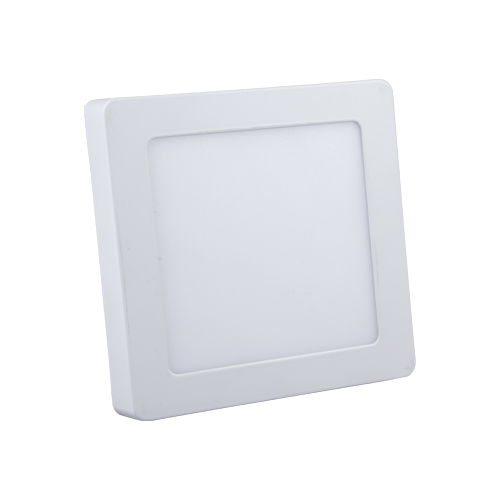

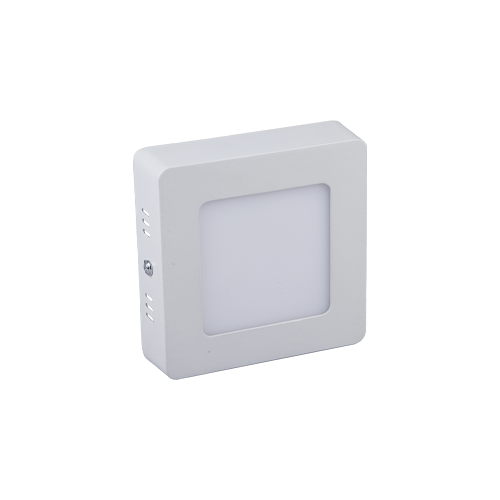

DOME LIGHTS YDES6 ,YDES12, YDES18, YDES24

CODE

DIMENSIONS(mm)

WATTAGE

YDES6

118 x 118 x 32

6

YDES12

166 x 166 x 32

12

YDES18

223 x 223 x 32

18

YDES24

300 x 300 x 32

24

LED                                                      Bridgelux /Edison/Seoul

LED SIZE                                             SMD

BODY COLOR                                     white

IP RATING                                          20

COLOR TEMP                                      2700 - 6500k

LUMEN OUTPUT                                > 420 lm |> 960 lm| >1440 lm | >1920lm

MATERIAL                                           Pressure die cast aluminum enclosure

BEAM ANGLE                                     120 Deg

MOUNTING                                        Surface

WARRANTY                                         2 Yrs
